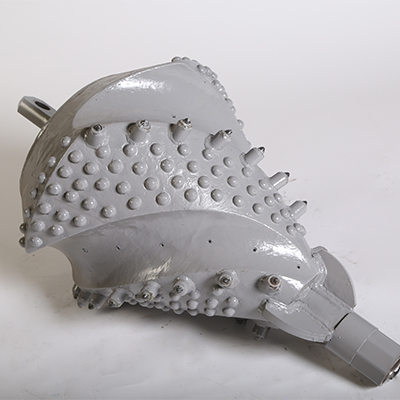

- 10-in (25.4-cm) Barrel reamer is tough, reliable and ready to get your horizontal directional drilling job done for you.
- Rotary teeth create aggressive cutting action.
- 3.5-in (8.9-cm) API reg box x pin.
- Robust thru-shaft design and heat-treated, cast-alloy steel for durability.
- Built-in swivel minimizes the distance from the directional drill to the product pipe, helping reduce the amount of resistance-causing spoil buildup.
- Robotically applied, carbide mesh grit hard facing adds longevity.
- Ideal HDD tooling for rugged ground conditions ranging from hard pan and soft rock to cobble
Available both with and without a built-in swivel, this popular general-purpose item’s fluted design helps carry slurry smoothly away.
| Size (mm) Swivel Connection* | ||||||
| 200 10T Built-in API 2 3/8 REG-Pulling Eye | ||||||
| 225 10T Built-in JT3020M1-Pulling Eye | ||||||
| 300 20T Built-in API 2 3/8 REG-Pulling Eye | ||||||
| 325 10T Built-in JT3020M1-Pulling Eye | ||||||
| 400 20T Built-in API 2 3/8 REG-Pulling Eye | ||||||
| 500 20T Built-in API 2 3/8 REG-Pulling Eye | ||||||
| 600 20T Built-in API 2 3/8 REG-Pulling Eye | ||||||
| 750 20T Built-in NC26-Pulling Eye | ||||||
| 900 20T Built-in NC26-Pulling Eye |
